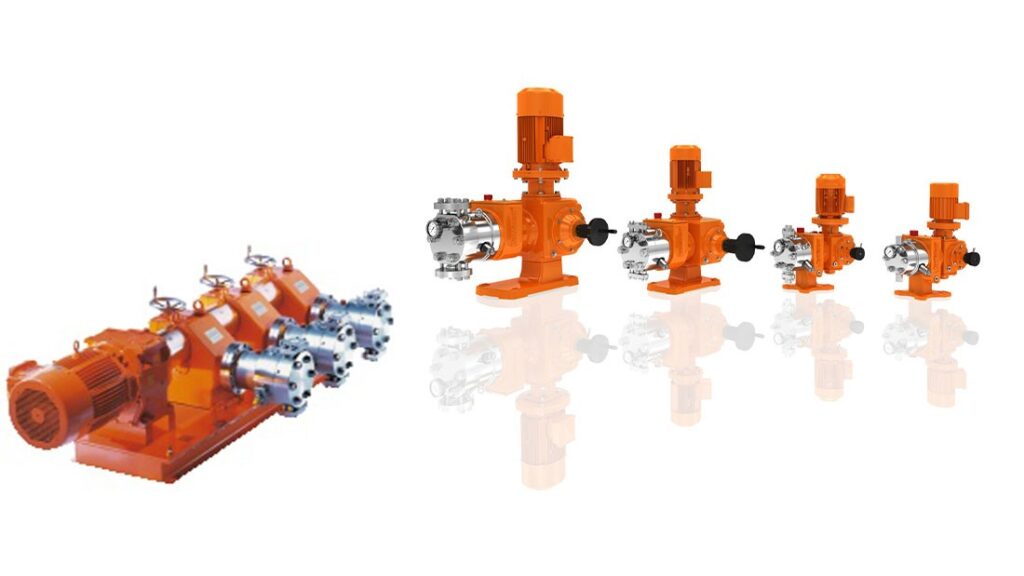

Process Metering Pumps

Zero Compromise

There is no room for compromise in high-end applications in the petrochemical and oil and gas industries. Risks associated with the metering of toxic, corrosive and flammable liquids must be fully eliminated. Reliable metering pumps need to be able to withstand very high pressure levels and extreme temperatures. What could be a more obvious solution for very challenging applications than ProMinent cutting-edge technology?

Ürün Grupları

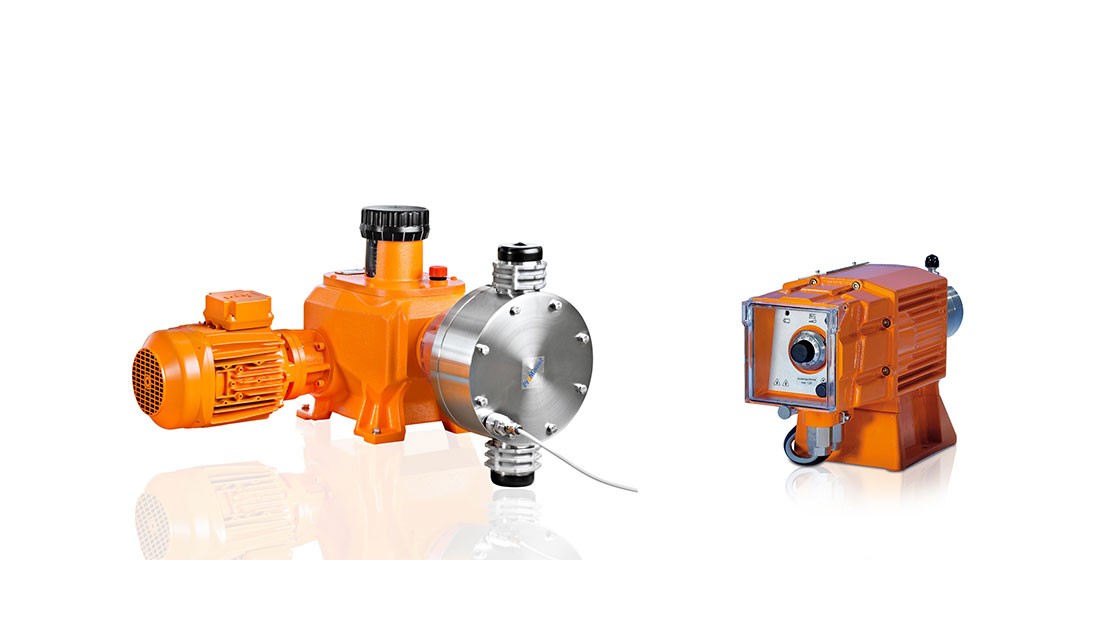

Diaphragm Metering Pumps

Not Just Sealed, Hermetically Sealed! The hermetically sealed metering units and resistant materials of ProMinent diaphragm process metering pumps enable them to pump aggressive media with ease. But that’s not all...

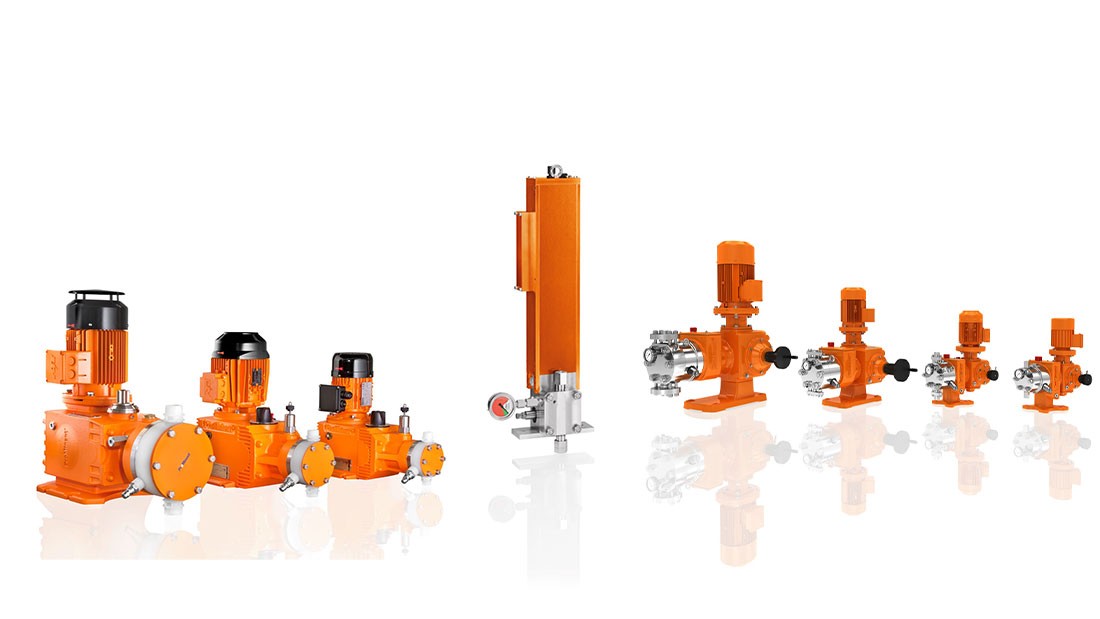

Hydraulic Diaphragm Metering Pumps

Pressure and Back Pressure High pressures are no problem in metering systems as long as there is something to counter them. ProMinent hydraulic diaphragm metering pumps therefore use a hydraulic fluid...

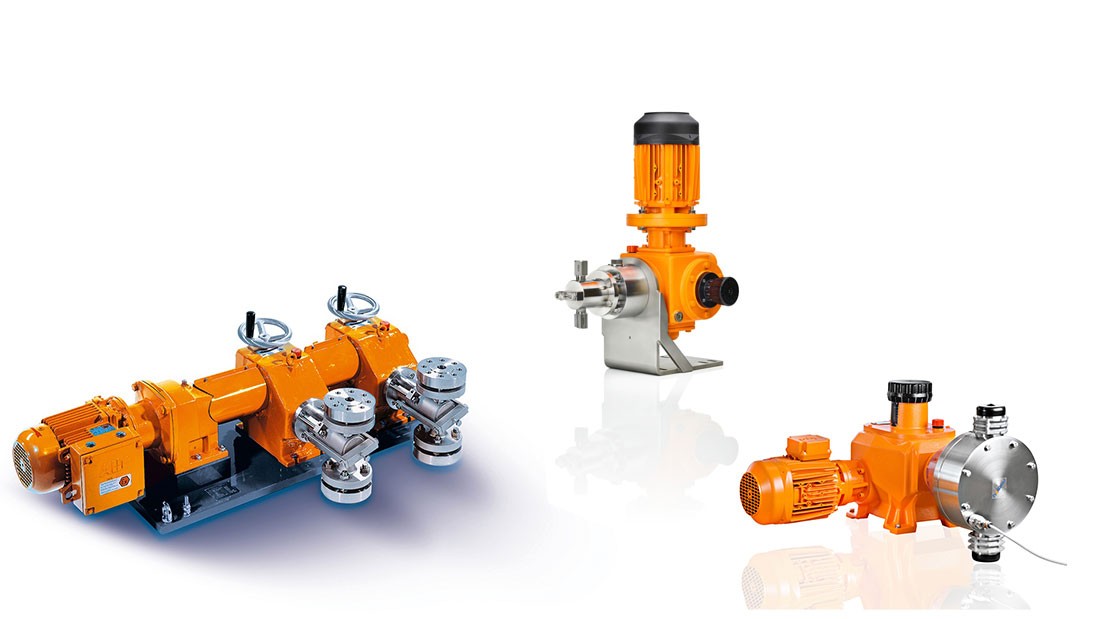

Plunger Metering Pumps

Plungers Are Synonymous with Accurate Metering The heart of the liquid end in a plunger metering pump is a high-resistance plunger made from coated stainless steel. As soon as the plunger...

Ürünler

Plunger Metering Pump ORLITA DR

Capacity range of single-head pump: 0 – 273 l/h, 400 – 76 bar

The plunger metering pump ORLITA DR does not need valves and can therefore be operated within a broad stroke rate range. It is therefore suitable for use with high-viscosity and extremely high-viscosity media of up to 106 mPas within a wide temperature range of -30 °C to +200 °C.

Plunger Metering Pump ORLITA PS

Capacity range of single-head pump: 0 – 2800 l/h, 800 – 11 bar

The high-performance plunger metering pump ORLITA PS enables precise pump capacities even at maximum pressure and temperatures of up to +400 °C. The ORLITA PS pump has a modular construction and is therefore very flexible.

Plunger Metering Pump Makro/ 5

Capacity range of single head pump: 38 – 6,014 l/h, 320 – 6 bar

The plunger metering pump Makro/ 5 can virtually be used throughout the low-pressure range and its modular construction enables it to be outstandingly adapted to the performance requirements of the respective application.

Plunger Metering Pump Makro TZ

Capacity range of single head pump: 8 – 1,141 l/h, 320 – 11 bar

The plunger metering pump Makro TZ impresses with its excellent process reliability, outstanding flexibility and its modular construction enables it to be outstandingly adapted to the performance requirements of the respective application.

Plunger Metering Pump Sigma/ 2 (Basic Type)

Capacity range 2 – 76 l/h, 320 – 12 bar

The plunger metering pump Sigma SBKa is an extremely robust plunger metering pump with high-performance plunger and the option to adjust the pump capacity in 0.2% increments. It offers a wide range of power end versions, such as three-phase or 1-phase AC motors, even for Exe and Exde areas with ATEX certification.

Hydraulic Diaphragm Metering Pump ORLITA Evolution E1Sa/ E2Sa

Capacity range of single-head pump: 0.9 – 134 l/h, 260 – 30 bar

As an extremely robust hydraulic diaphragm metering pump, the ORLITA Evolution E1Sa/E2Sa meets the most exacting safety requirements. It is characterised by its PTFE multi-layer diaphragm with integral diaphragm rupture warning / signalling system and unique diaphragm position control.

Hydraulic Metal Diaphragm Metering Pump ORLITA MHHP

Capacity range of a single pump: 3 – 4 l/h; 3000 bar

The metal diaphragm metering pumps ORLITA MHHP are special pumps, which provide precise pump capacities even at maximum pressures of up to 3000 bar.

Hydraulic Diaphragm Metering Pump ORLITA MH

Capacity range of single pump: up to 320 l/h, up to 900 bar

The diaphragm metering pump ORLITA MH has a robust metal diaphragm. This permits precise pump capacities even at very high pressure. The ORLITA MH has a modular construction and is therefore very versatile. For example, a range of drive versions is available and drives and dosing heads can be freely combined.

Hydraulic Diaphragm Metering Pump ORLITA Evolution Mikro

Capacity range 0.01 – 18 l/h, 250 – 10 bar

The ORLITA Evolution mikro is an innovative micro-metering pump for high pressures. The hydraulic diaphragm metering pump is the first of its kind with an electronically regulated linear direct power end. The power end has few mechanical functional elements and thus operates with virtually minimal maintenance.

Hydraulic Diaphragm Metering Pump ORLITA Evolution

Capacity range of single-head pump: 3 – 7400 l/h, 400 – 10 bar

The ORLITA Evolution meets the most exacting safety requirements as an extremely robust hydraulic diaphragm metering pump. It is characterised by its PTFE multi-layer diaphragm with integral diaphragm rupture warning/signalling and unique diaphragm position control.
